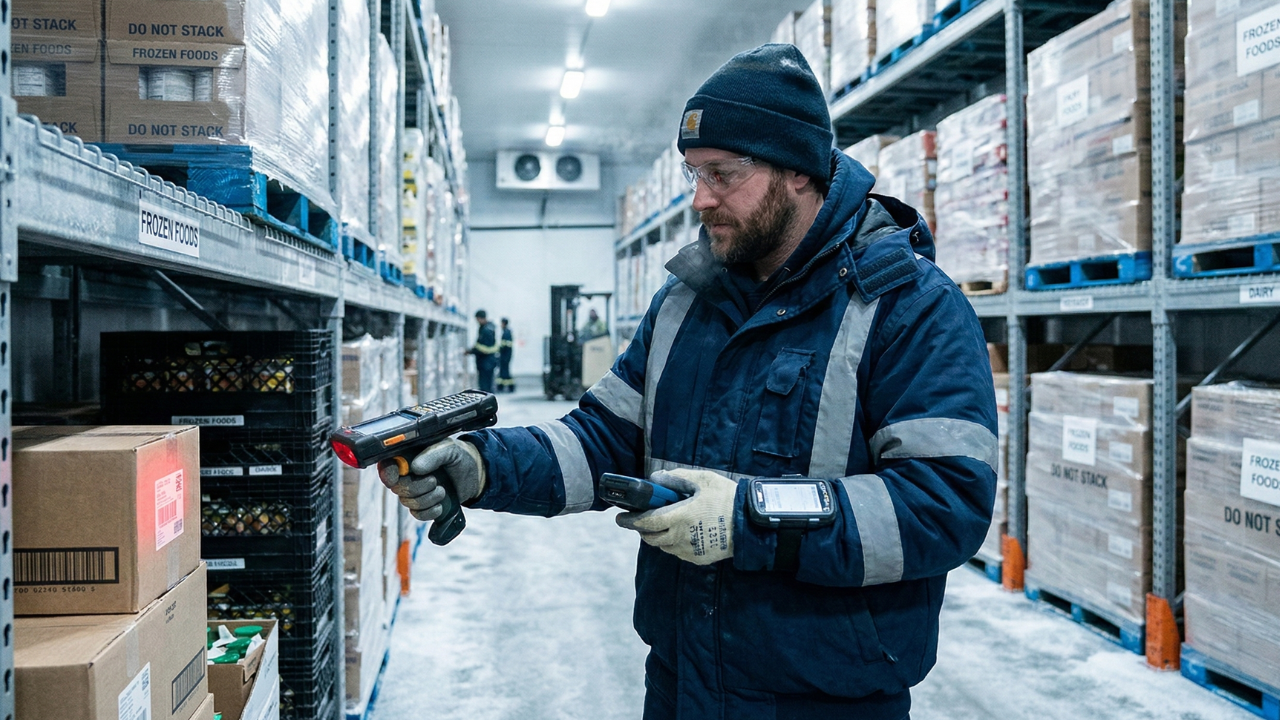

In the sub-zero silence of a cold storage facility, a silent electrochemical "cancer" is eating away at your operational margins. It isn't a software glitch or a mechanical failure. It is Lithium Plating, a phenomenon where the very physics of cold environments turns your battery’s internal chemistry against itself.
For IT and Operations Managers, the "cold tax" is usually measured in sluggish screen responses or frequent battery swaps. But the true cost is deeper. While a standard industrial-cycle cell might promise 500 to 1,000 cycles, the harsh reality of -20°C environments can slash that lifespan by 60% if the hardware isn't engineered for the freeze.
The Answer: Why Do Li-ion Batteries Fail in Cold Storage?
Lithium-ion battery efficiency drops significantly below 5°C (41°F) because the liquid electrolyte becomes increasingly viscous. Think of it like motor oil in winter: as it thickens, the movement of lithium ions slows to a crawl. When you attempt to charge a "cold-soaked" battery, the ions cannot move fast enough to enter the anode (intercalation). Instead, they accumulate on the surface, forming a metallic coating known as Lithium Plating.
This plating is permanent. It reduces the available lithium for energy transfer, increases internal resistance, and can eventually lead to dendrites, microscopic, needle-like structures that can puncture the internal separator, causing catastrophic short circuits or thermal runaway. Top-tier refurbished rugged devices, such as those from Zebra or Honeywell, utilize PowerPrecision+ or specialized cold-chain batteries designed to mitigate these physics with unique electrolyte chemistries and thermal management, supporting up to 5,000 recharge cycles even in extreme conditions.
The Physics of the "Electrochemical Slowdown"
To understand why your scanners are dying mid-shift, we have to look at the Arrhenius Equation. In simple terms, chemical reaction rates drop exponentially as temperature decreases.
Inside a Li-ion cell, three specific bottlenecks occur when the mercury hits zero:
- Electrolyte Viscosity: The medium through which ions travel thickens. At -20°C, the ionic conductivity can be as much as 100 times lower than at room temperature.
- Increased Charge Transfer Resistance: The "gate" that ions must pass through to enter the anode becomes "stiff." It takes more energy (voltage) to force the ions into the graphite structure.
- The Plating Threshold: During charging, if the voltage required to move ions exceeds the electrochemical potential of metallic lithium, the ions stop trying to get into the anode and simply stick to the outside.
The Dendrite Danger
Once lithium plating begins, it creates a "path of least resistance." New ions prefer to stick to existing metallic lithium rather than struggle into the anode. This creates "dendrites."
In a high-throughput warehouse, this isn't just a technical curiosity, it’s a safety risk and a massive CAPEX drain. When a battery is "plated," it loses capacity forever. You aren't just losing a shift; you’re losing the asset.
Operational Excellence: Industrial vs. Commercial Cells
Many procurement teams make the mistake of assuming all Li-ion batteries are created equal. They see a "rugged" scanner at a discount and assume the battery is up to the task.
However, industrial-cycle cells used in top-tier refurbished equipment are built with a different "recipe."
- Low-Temperature Electrolytes: These use specialized co-solvents (like methyl acetate) that maintain low viscosity at -30°C.
- Heated Battery Logic: Some advanced units include internal heaters that use a small portion of the charge to warm the cells to a safe "charging zone" before allowing current to flow.
- Thicker Separators: To defend against the aforementioned dendrites, industrial cells often feature reinforced ceramic-coated separators.
The "Cold Chain" TCO: Why Refurbished Quality Trumps "New" Inexpensive Android Devices
In the logistics world, Total Cost of Ownership (TCO) is the only metric that matters. A cheap, unverified battery in a cold storage environment is a ticking financial bomb.
If your team is swapping batteries three times a shift because of voltage sag (where the battery "tricks" the device into thinking it's dead because the voltage drops under load), you are losing 15–20 minutes of productivity per worker, per day. Across a fleet of 50 workers, that is 12.5 hours of lost labor daily.
By sourcing top-tier refurbished barcode equipment, you are accessing the engineering of OEMs like Zebra and Honeywell, companies that have spent millions perfecting the "physics of the freeze", at a fraction of the cost of new equipment.
Preventing Li-ion Failure: 2 Managerial Rules
- Never Charge Cold: Ensure batteries are acclimated to at least 10°C (50°F) before hitting the cradle. Charging a battery at -10°C is the fastest way to trigger irreversible lithium plating.
- Monitor "Voltage Sag": If your devices are shutting down at 30% reported battery life, it’s a sign of high internal resistance caused by previous plating. It’s time to retire that cell.
The Bottom Line
Operational excellence in cold storage isn't about working harder; it’s about respecting the physics of your equipment. Lithium plating is an invisible enemy, but it is one that can be defeated with the right hardware and the right charging protocols.
Bulletproof your cold storage fleet. Browse our collection of freezer-rated Zebra and Honeywell scanners at Scandepot.com and ensure your operations never freeze up.
